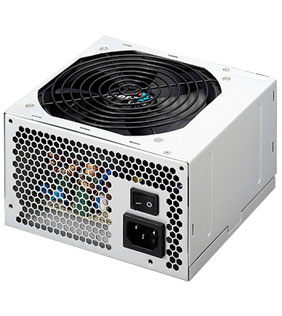

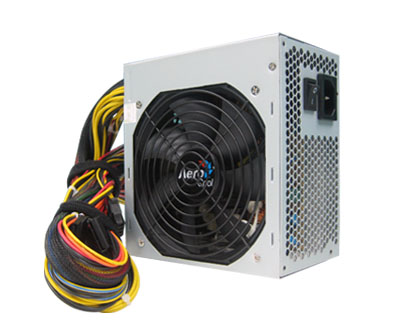

Aerocool E78-730

E78-730

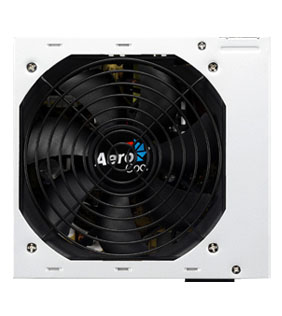

Silence 12cm fan with Intelligent fan speed control

- Compatible with ATX 12V2.3 and EPS 12V compliant.

- Universal AC input (100-240Vac, full range).

- Supports systems with multi-core CPU and GPU technology.

- Silence 12cm fan with Intelligent fan speed control.

- Efficient and quality component architecture.

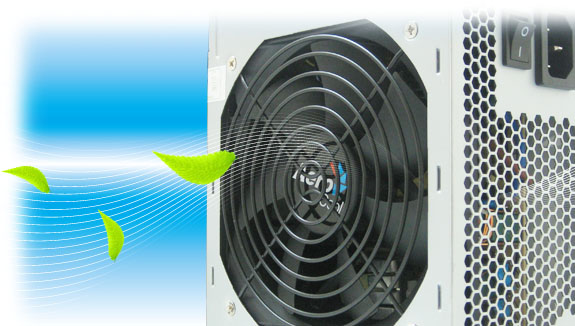

- Honeycomb ventilation design for optimal heat dissipation.

- Up to 78% efficiency

- Powerful Dual +12V rails offer stability and performance

.. for systemand peripherals.

- Green Power design for energy saving .

- Active Power Factor Correction (PF>0.99).

- Low ripple noise.

- Protections: Over Current protection, Over Voltage protection,

- Over power protection, Under voltage protection,

- and Short-Circuit protection.

- Black mesh sleeving for 20+4 pin cable only.

MODEL NAME	AC INPUT
E78-730	100-240V~ 50-60Hz 10A

DC OUTPUT

+3.3V

+5V

+12V1

+12V2

-12V

5VSB

MAX. TOTAL OUTPUT

DIMENSION

24A

20A

30A

0.3A

2.5A

730W

140 (L) X 86(H) X 150(W)

150W

648W

INDEPENDENT CIRCUITS & DYNAMIC LOAD DISTRIBUTION 12V
MODEL	+12V OUTPUT	12V1	12V2
E78-730	SUPPORT PC DEVICES	CPU1/2 + Graphic Card1+ Peripherals +MB	CPU1/2 + Graphic Card1

	CONNECTORS	ATX/EPS 12V 4 Pin, PCI-E 8(6+2)Pin 24(20+4) Pin, Peripheral, Floppy and S-ATA	ATX/EPS 12V, PCI-E 6 Pin

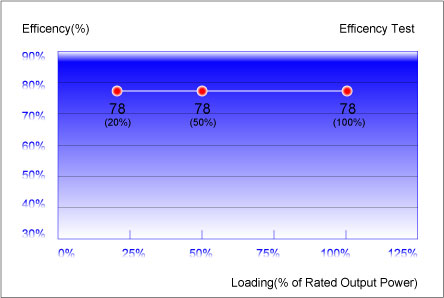

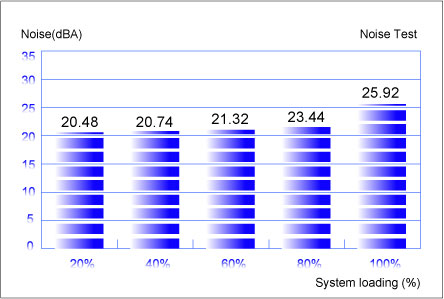

EFFICIENCY	NOISE
