E78-430
Silence 12cm fan with Intelligent fan speed control
- Compatible with ATX 12V2.3 and EPS 12V compliant.
- Universal AC input of 230V.
- Supports systems with multi-core CPU and GPU technology.

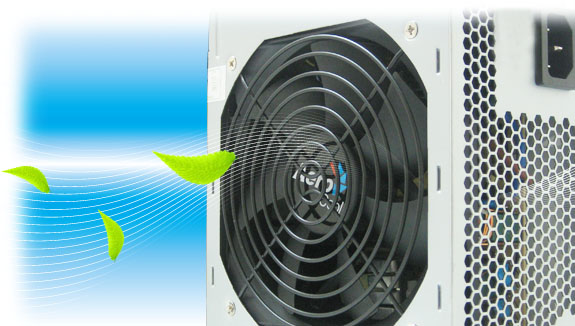

- Silence 12cm fan with Intelligent fan speed control.
- Efficient and quality component architecture.
- Honeycomb ventilation design for optimal heat dissipation.
- Up to 78% efficiency
- Powerful Dual +12V rails offer stability and performance
.. for systemand peripherals.
- Green Power design for energy saving .
- Low ripple noise.
- Protections: Over Current protection, Over Voltage protection,
- Over power protection, Under voltage protection,
- and Short-Circuit protection.

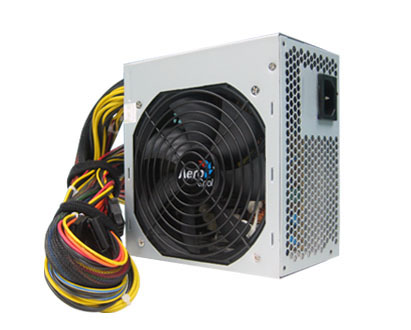

- Black mesh sleeving for 20+4 pin cable only.
MODEL NAME
AC INPUT
E78-430
230V~ 50-60Hz 10A

DC OUTPUT
+3.3V
+5V
+12V1

+12V2

-12V
5VSB
MAX. TOTAL OUTPUT
DIMENSION
20A
14A
21A
21A
0.3A
2.0A
430W
140 (L) X 86(H) X 150(W)
130W
324W

Direct Cables from PSU

20+4 PIN cable
1 x 4 PIN cable

2 x (2 x S-ATA) cables
1 x (2 x HDD 4 PIN & 1 x FDD 4 PIN) cable

INDEPENDENT CIRCUITS & DYNAMIC LOAD DISTRIBUTION 12V
MODEL
+12V OUTPUT
12V1
12V2
E78-430
SUPPORT PC DEVICES
MB + Peripherals
CPU
CONNECTORS
24 Pin (20+4), Peripheral, Floppy and S-ATA
12V (4 Pin)

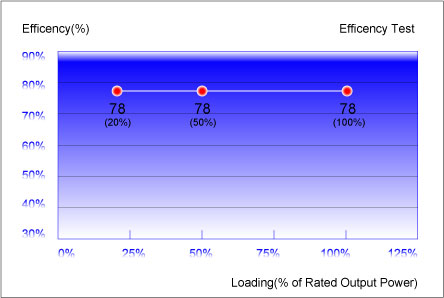

EFFICIENCY
NOISE
