Estas fotos son con fines ilustrativos. No todos los ventiladores LED están incluidos.
Por favor, consulte el apartado sistema de refrigeracion para verificar los ventiladores incluidos.

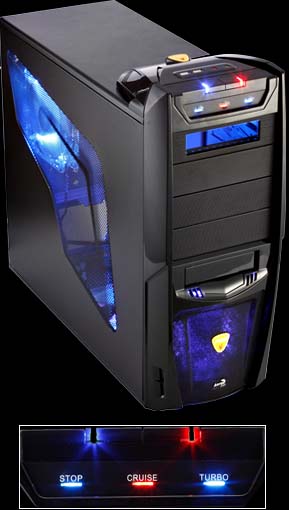

- High performance case for gamers and enthusiasts
- Bright mirror black front and top panel finishing
- Mesh side panel with options to install 1x12cm or 14cm fan

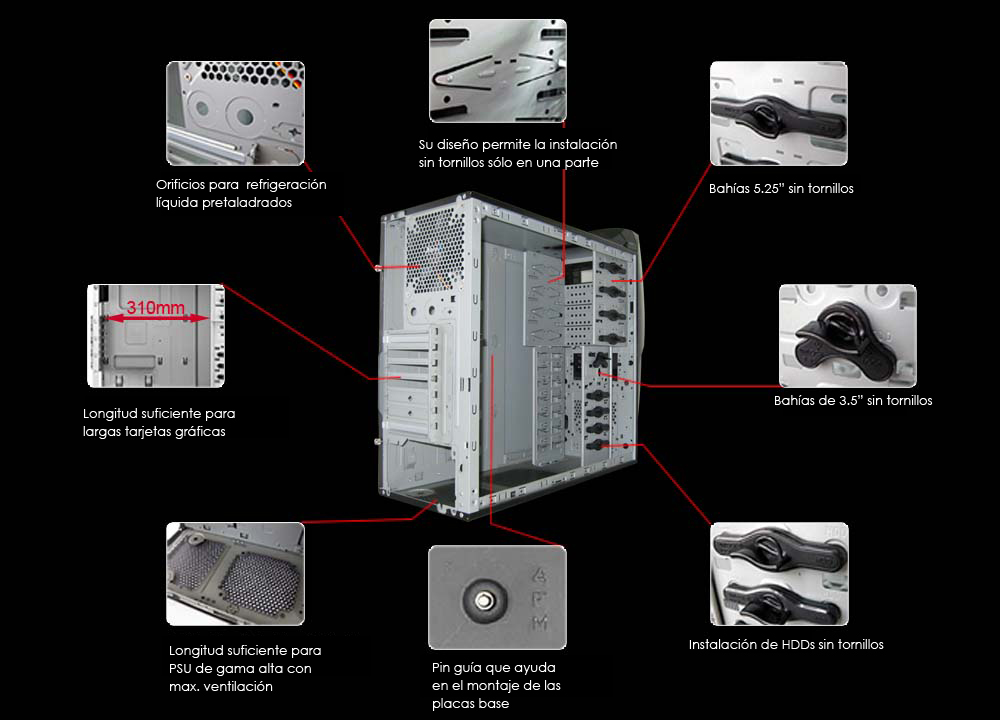

- Solidly constructed screwless chassis
- Support longer high-end VGA cards up to 310mm
- Includes USBs/audio/mic
- Includes a fan controller to control all fans (up to 20Watts)
Stop mode -stop all fans
Cruise mode - all fans rotate at 60% of max. speed (silent mode)
Turbo mode - all fans rotate at max. speed (gaming and overclocking)

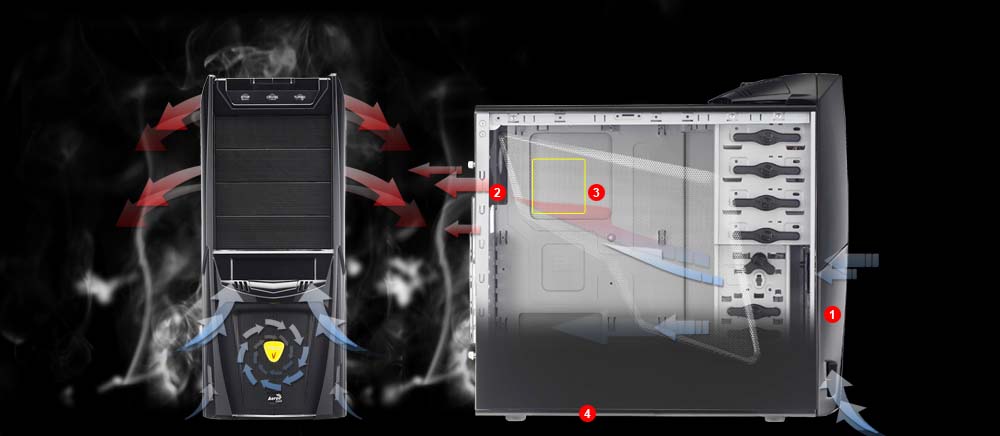

Superb airflow - install up to 4 fans


1. Front - 1x12cm fan (optional)
3. Side - 1x12cm or 14cm fans (optional)


2. Back - 1x12cm fan (included)
4. Bottom - 1x12cm fan (optional)




Case Type
Middle Tower
Material
SECC 0.5mm
Motherboards
ATX & Micro ATX
Chassis Dimensions
452(H) x 196(W) x 493(D)
Drive Bays
5 x 5.25" (External)�B3 x 3.5" (External-with adaptor) 4 x HDD (Hidden)
Expansion Slots
7 Slots
Max length space available for PCI slots
310 mm
I / O Ports
2 x USB2.0 / Mic & headphone (AC97 & HD audio)
Fan controller
controls 3 fans simultaneously with max combined wattage of 20W


Rear

Fan

120 x 120 x 25mm


Rated voltage
12V

Voltage range
DC6V~13.8V

Starting voltage
9V

Power consumption
2.4W

Rated current
0.20A

Speed
1500 RPM +- 10%

Air Flow (CFM)
53.55 CFM (Max)

Air pressure
1.995mm H2O

Noise (dBA)
25.95 dBA

Bearing
Sleeve








Aerocool Advanced Technologies Corp
12F., No.75. Hsin Tai Wu Rd., Sec. 1, Hsi Chih, Taipei Hsien, Taiwan 221
http://www.aerocool.com.tw Tel:886-2-86981088 Fax:886-2-86981082
