Estas fotos son con fines ilustrativos. No todos los ventiladores LED están incluidos.
Por favor, consulte el apartado sistema de refrigeracion para verificar los ventiladores incluidos.

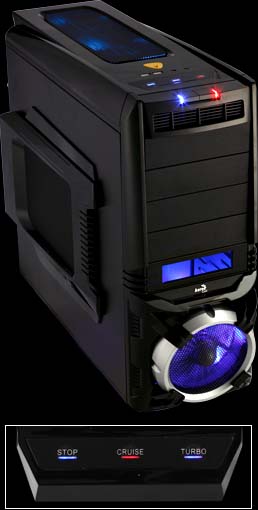

- High performance case for gamers and enthusiasts
- Bright mirror black front and top panel finishing
- Bright mirror black side panel design w/1x 20cm fans
- 9 x 5 1/4" bays for max. expandability

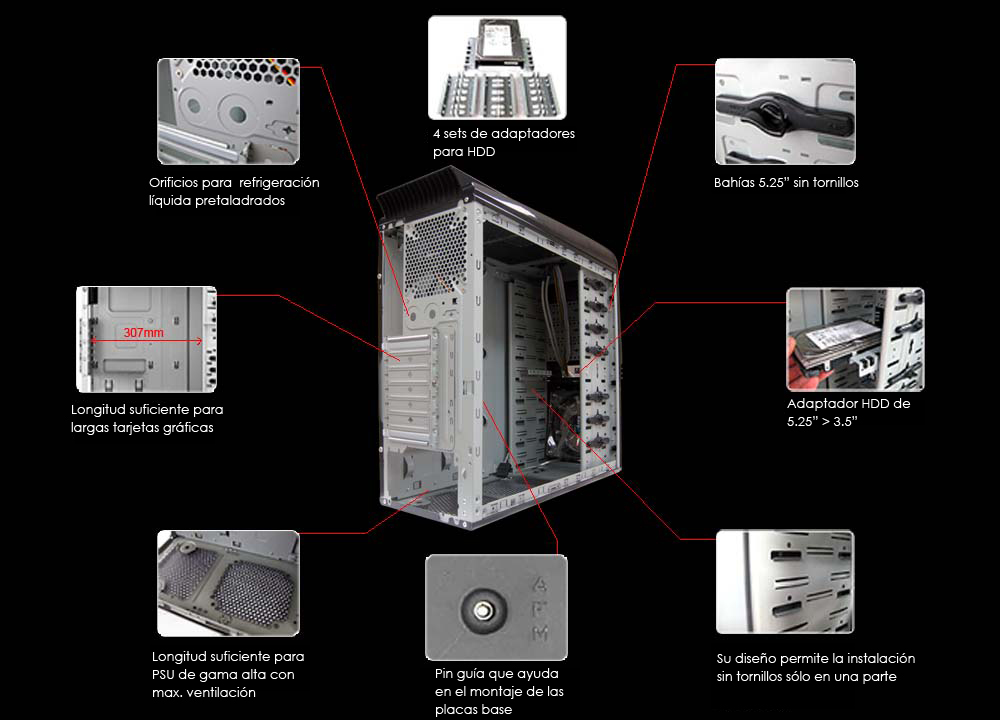

- Solidly constructed screwless chassis
- Support longer high-end VGA cards up to 307mm
- Includes 1 sets of 5 1/4" > 3 1/2" convertible adaptors for HDDs or FDD
- Includes a fan controller to control all fans (up to 20Watts)
Stop mode - stop all fans
Cruise mode - all fans rotate at 60% of max. speed (silent mode)
Turbo mode - all fans rotate at max. speed (gaming and overclocking)

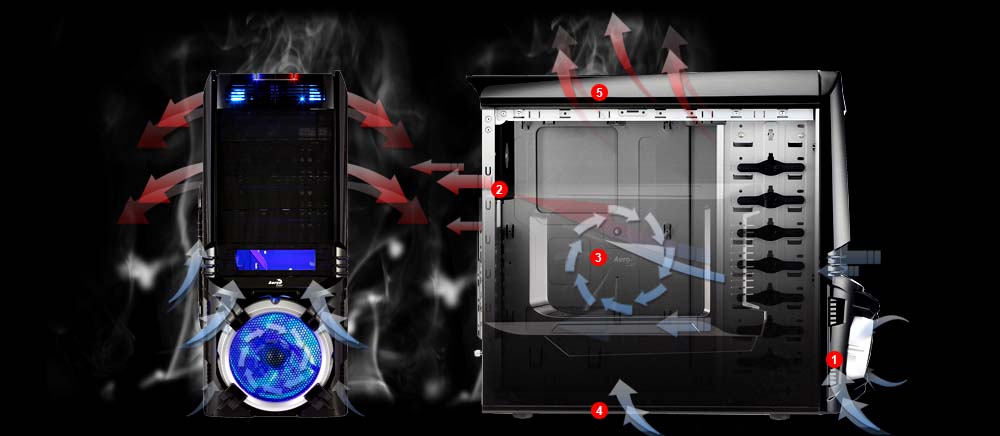

Superb airflow - install up to 6 fans
3. Side - 1x20cm (included)


1. Front - 1x14cm Blue LED fan (included)
4. Bottom - 1x12cm fan (optional)


2. Back - 1x12cm fan (included)
5. Top - 2x12cm or 14cm fan (optional)




Case Type
Middle Tower
Material
SECC 0.5mm
Motherboards
ATX & Micro ATX
Chassis Dimensions
452(H) x 196(W) x 539(D)
Drive Bays
5 x 5.25" (External)�B1 x 3.5" (External-with adaptor) / 4 sets of adaptors for HDD
Expansion Slots
7 Slots
Max length space available for PCI slots
307 mm
I / O Ports
2 x USB2.0 / Mic & headphone (AC97 & HD audio)
Fan controller
controls 3 fans simultaneously with max combined wattage of 20W


Front
Side
Rear
Fan

140 x 140 x 25mm (with quad blue LEDs)
Dia 200 x 25mm

120 x 120 x 25mm
Rated voltage
12V
12V
12V
Voltage range
DC6V~13.8V
DC6V~13.8V
DC6V~13.8V
Starting voltage
6V
9V
9V
Power consumption
3.36W
2.4W
2.4W
Rated current
0.28A
0.20A
0.20A
Speed
1500 RPM +- 10%
800 RPM +- 200RPM
1500 RPM +- 10%
Air Flow (CFM)
81.0 CFM (Max)
76.0 CFM (Max)
53.55 CFM (Max)
Air pressure
1.87mm H2O
0.49 mm H2O
1.995mm H2O
Noise (dBA)
25.3 dBA
24.2 dBA
25.95 dBA
Bearing
Sleeve
Sleeve
Sleeve







Aerocool Advanced Technologies Corp
12F., No.75. Hsin Tai Wu Rd., Sec. 1, Hsi Chih, Taipei Hsien, Taiwan 221
http://www.aerocool.com.tw Tel:886-2-86981088 Fax:886-2-86981082
