Estas fotos son con fines ilustrativos. No todos los ventiladores LED están incluidos.
Por favor, consulte el apartado sistema de refrigeracion para verificar los ventiladores incluidos.

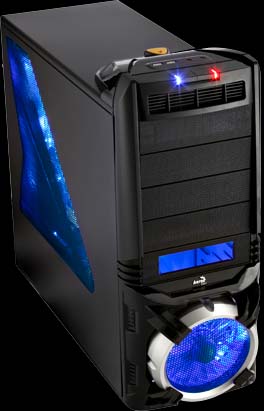

- High performance case for gamers and enthusiasts
- Bright mirror black front and top panel finishing
- "Wing" design mesh side panel w/options to install 2x12 or 14 cm fans
- 5 x 5 1/4" bays for max. expandability
- Solidly constructed screwless chassis
- Support longer high-end VGA cards up to 307mm
- Includes 4 sets of 5 1/4">3 1/2" adaptors for HDDs and FDD
- Includes USBs/audio/mic

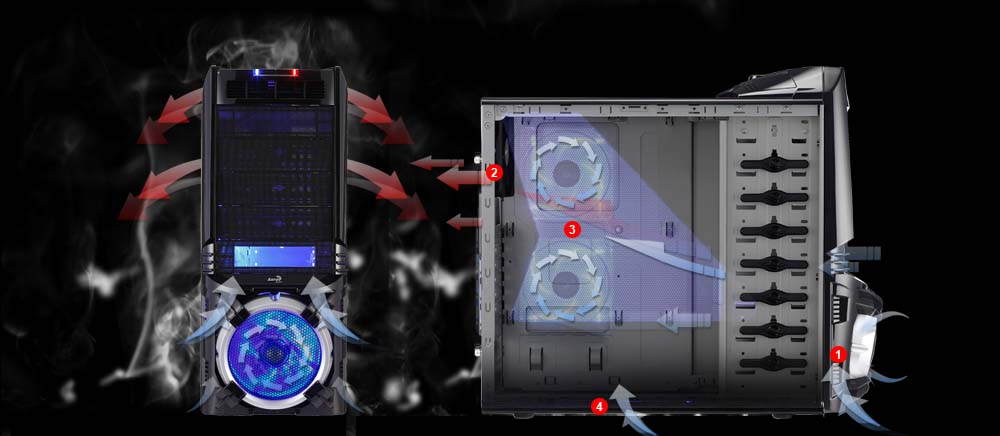

Superb airflow - install up to 5 fans


1. Front - 1x14cm Blue LED fan (included)
3. Side - 2x12cm or 14cm fans (optional)


2. Back - 1x12cm fan (included)
4. Bottom - 1x12cm fan (optional)




Case Type
Middle Tower
Material
SECC 0.5mm
Motherboards
ATX & Micro ATX
Chassis Dimensions
452(H) x 196(W) x 539(D)
Drive Bays
5 x 5.25" (External)�B1 x 3.5" (External-with adaptor) / 4 sets of adaptors for HDD
Expansion Slots
7 Slots
Max length space available for PCI slots
307 mm
I / O Ports
2 x USB2.0 / Mic & headphone (AC97 & HD audio)


Front
Rear

Fan

140 x 140 x 25mm (with quad blue LEDs)

120 x 120 x 25mm


Rated voltage
12V
12V

Voltage range
DC6V~13.8V
DC6V~13.8V

Starting voltage
6V
9V

Power consumption
3.36W
2.4W

Rated current
0.28A
0.20A

Speed
1500 RPM +- 10%
1500 RPM +- 10%

Air Flow (CFM)
81.0 CFM (Max)
53.55 CFM (Max)

Air pressure
1.87mm H2O
1.995mm H2O

Noise (dBA)
25.3 dBA
25.95 dBA

Bearing
Sleeve
Sleeve
