Estas fotos son con fines ilustrativos. No todos los ventiladores LED están incluidos.
Por favor, consulte el apartado sistema de refrigeracion para verificar los ventiladores incluidos.

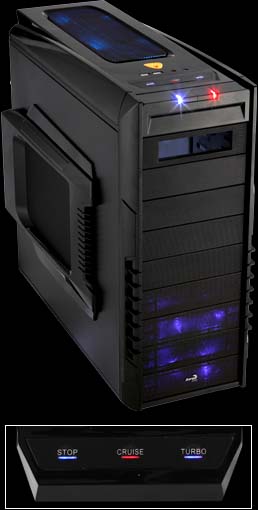

- High performance case for gamers and enthusiasts
- Bright mirror black front and top panel finishing
- Bright mirror black side panel design w/1x 20cm fans
- 9 x 5 1/4" bays for max. expandability
- Solidly constructed screwless chassis
- Support longer high-end VGA cards up to 307mm
- Includes 1 sets of 5 1/4" > 3 1/2" convertible adaptors for HDDs or FDD
- Includes 1 x HDD cage to fit 3 x HDDs (screwless)
- Includes a fan controller to control all fans (up to 20Watts)
Stop mode -stop all fans
Cruise mode - all fans rotate at 60% of max. speed (silent mode)
Turbo mode - all fans rotate at max. speed (gaming and overcloacking)

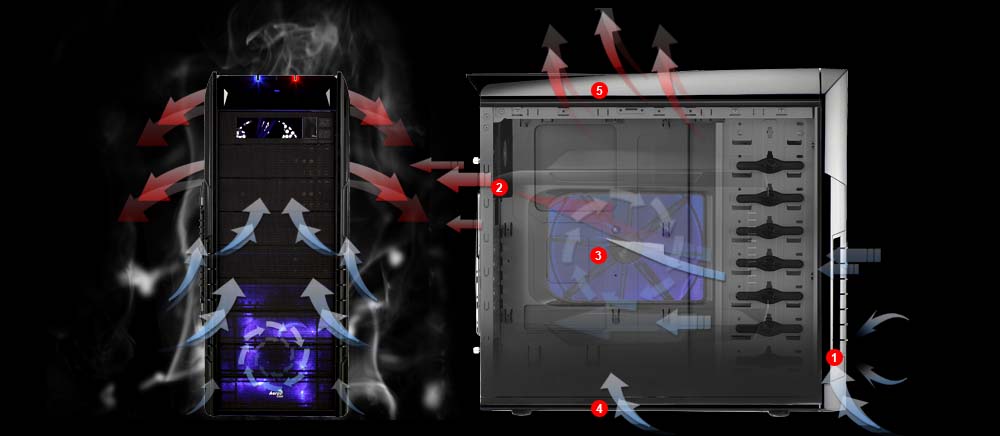

Superb airflow - install up to 6 fans
3. Side - 1x20cm (included)


1. Front - 1x12cm fan (optional)
4. Bottom - 1x12cm fan (optional)


2. Back - 1x12cm fan (included)
5. Top - 2x12cm or 14cm fan (optional)




Case Type
Middle Tower
Material
SECC 0.5mm
Motherboards
ATX & Micro ATX
Chassis Dimensions
452(H) x 210(W) x 492(D)
Drive Bays
9 x 5.25" (External) / 1 x 3.5" (External-with adaptor) / 3x3 HDD cage
Expansion Slots
7 Slots
Max length space available for PCI slots
307 mm
I / O Ports
2 x USB2.0 / Mic & headphone (AC97 & HD audio)
Fan controller
controls 3 fans simultaneously with max combined wattage of 20W


Side
Rear

Fan
Dia 200 x 25mm

120 x 120 x 25mm


Rated voltage
12V
12V

Voltage range
DC6V~13.8V
DC6V~13.8V

Starting voltage
9V
9V

Power consumption
2.4W
2.4W

Rated current
0.20A
0.20A

Speed
800 RPM +- 200RPM
1500 RPM +- 10%

Air Flow (CFM)
76.0 CFM (Max)
53.55 CFM (Max)

Air pressure
0.49 mm H2O
1.995mm H2O

Noise (dBA)
24.2 dBA
25.95 dBA

Bearing
Sleeve
Sleeve
