- Estas fotos son con fines ilustrativos. No todos los ventiladores LED están incluidos.
Por favor, consulte el apartado sistema de refrigeracion para verificar los ventiladores incluidos.
|
|

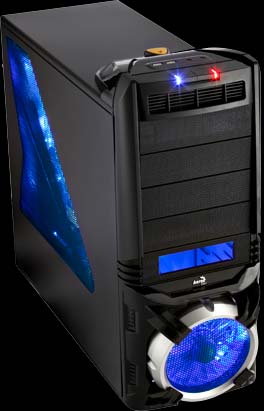

- Semi torre de alto rendimiento para jugadores y aficionados.
- Bright mirror black front and top panel finishing.
- "Wing" design mesh side panel w/options to install 2x12 or 14 cm fans.
- 5 x 5 1/4" bays for max. expandability.

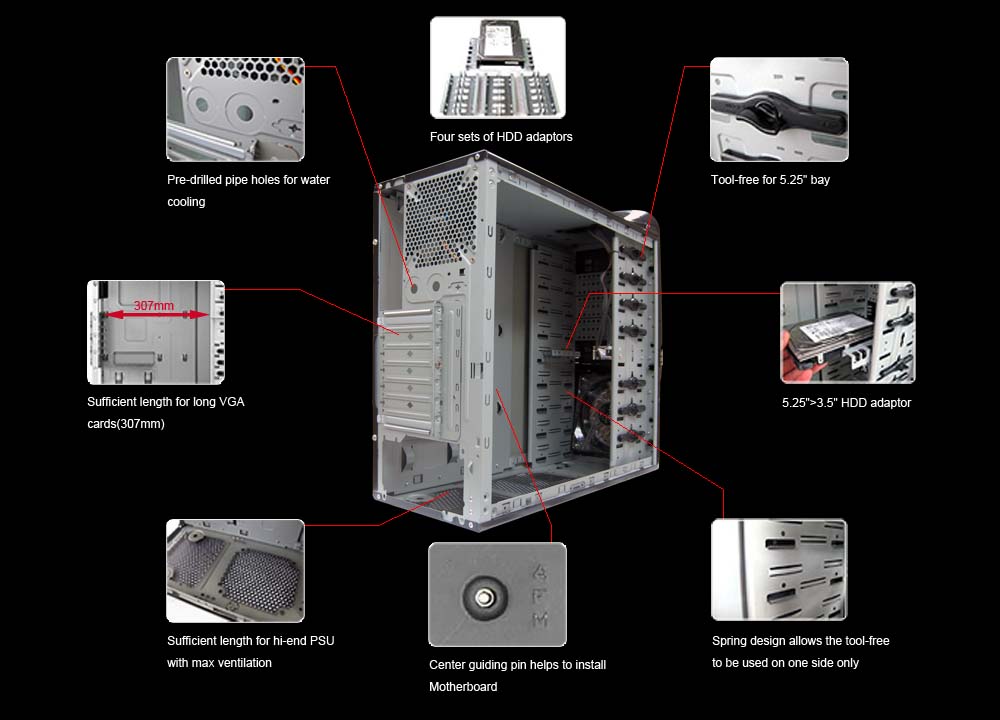

- Solidly constructed screwless chassis.
- Soporta Tarjeta gráfica de gama alta de hasta 307mm.
- Includes 4 sets of 5 1/4" to 3 1/2" adaptors for HDDs and FDD.
- Includes USBs / audio / mic
|
|
|
|
| ▲ARRIBA |
 |
 |
| ▲ARRIBA |
 |

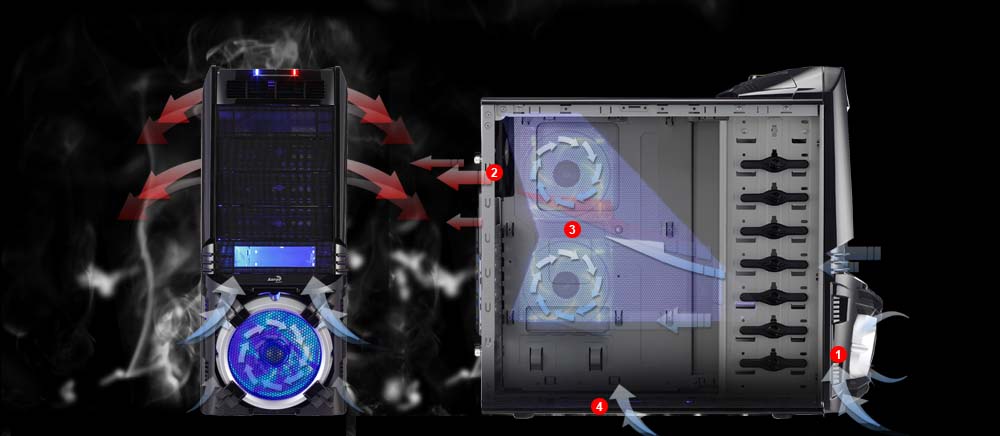

| Superb airflow - install up to 6 fans |
- 1. Front - 1x14cm Blue LED fan (included)
- 2. Back - 1x12cm fan (included)
|
- 3. Side - 2x12cm or 14cm fans (optional)
- 4. Bottom - 1x12cm fan (optional)
|
|
 |
| ▲ARRIBA |
 |
| Case Type |
Middle Tower |
| Material |
SECC 0.5mm |
| Motherboards |
ATX / Micro-ATX |
| Chassis Dimensions |
452(H) x 196(W) x 539(D) |
| Drive Bays |
5 x 5.25" (External) / 1 x 3.5" (External-with adaptor) / 4 sets of adaptors for HDD |
| Expansion Slots |
7 Slots |
| Max length space available for PCI slots |
307 mm |
| I/O Ports |
2 x USB2.0 / MIC & Headphone (AC97 & HD audio) |
|
 |
| |
Front |
Rear |
| Fan |
140 x 140 x 25mm
(with quad blue LEDs) |
 |
120 x 120 x 25mm |
 |
| Rated voltage |
12V |
12V |
| Voltage range |
DC 6V ~ 13.8V |
DC 6V ~ 13.8V |
| Starting voltage |
6V |
9V |
| Power consumption |
3.36W |
2.4W |
| Rated current |
0.28A |
0.20A |
| Speed |
1500 RPM ± 10% |
1500 RPM ± 10% |
| Air Flow (CFM) |
81.0 CFM (Max) |
53.55 CFM (Max) |
| Air pressure |
1.87mm H2O |
1.995mm H2O |
| Noise (dBA) |
25.3 dB-A |
25.95 dB-A |
| Bearing |
Sleeve
|
Sleeve
|
|
