• Estas fotos son con fines ilustrativos. No todos los ventiladores LED están incluidos.
    Please refer to the "Cooling System" for actual fan specification.
  • High performance "Cube" case for gamers and enthusiast - Supports Micro-ATX MBs.
  • Solidly constructed chassis - 0.6mm SECC Japanese Steel.
  • High-end Graphic card Support - Supports longer high-end VGA cards up to 300mm.
  • High versatility - Supports 2 x 5 1/4" devices (external), 1 x 3, 1/2" device (external) - and 2 x 3 1/2" HDDs (internal).

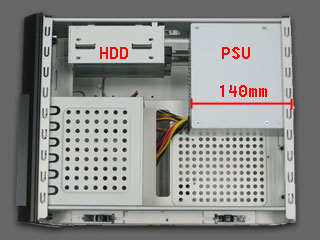

  • Supports standard ATX PSU – 140mm prefer length but can support up to 160mm.
  • Ease of Installation - Screw-less kits are provided for the 5 1/4"bays.
  • Easy Access front I/O ports - 2 x USBs and Audio/Mic (AC 97+ HD Audio).

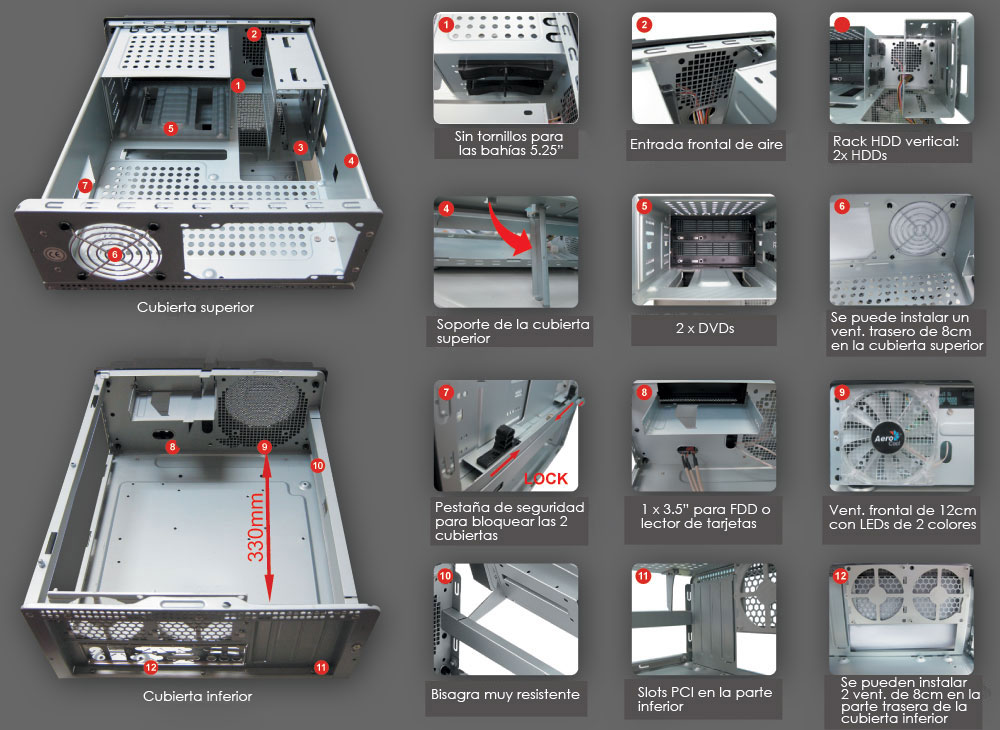

  • Unique "Double Decker" chassis – isolates excessive heat producing components from the rest of the system. This unique structure also created more space inside the chassis to support high end components.
  • Excellent Thermal Performance – install up to 1 x 12cm intake fan (included) and 3 x 8cm exhaust fans (optional).

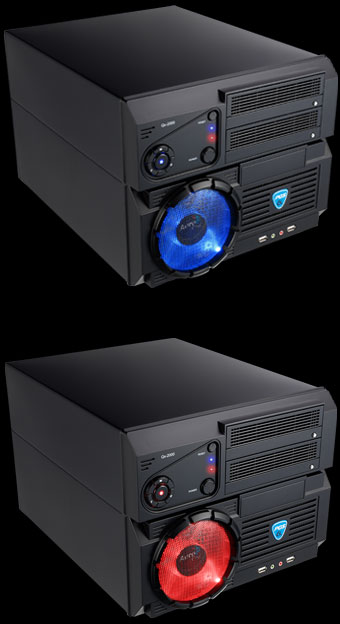

  • Fan controller with LED color switch – users has the option to set the fan speed to "Low", "Medium" and "High". Users also has the option option to set the front 12cm LED fan to Blue LED or Red LED or switch off the LED light completely.
▲ARRIBA

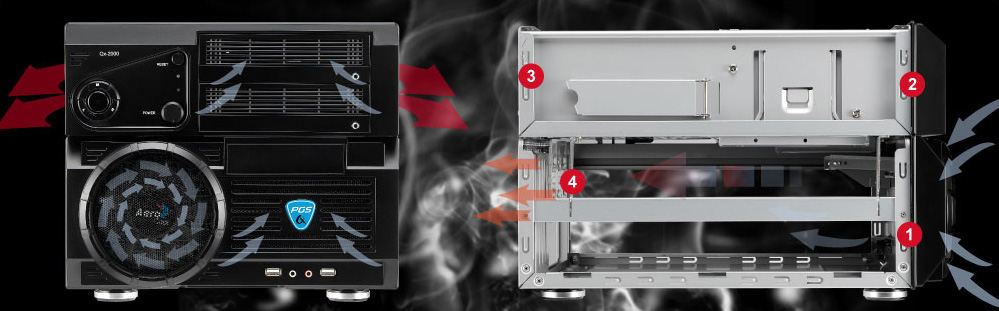

Espectacular flujo de aire - Instalación posible para 5 ventiladores !!
  1. 1. Zona Frontal - 1 x 12cm Blue & Ventilador LED Rojo(incluido)
  2. 2. Zona Frontal - 1 x 6cm Ventilador (optional)
  1. 2. Zona Trasera (arriba) - 1 x 8cm ventilador (opcional)
  2. 3. Zona Trasera (abajo) - 2 x 8cm ventilador (opcional)
▲ARRIBA

El contenido requiere Adobe Flash Player.

Get Adobe Flash player

Tipo Cube Tower
Material SECC 0.6mm
Placas base Micro-ATX
Dimensiones 240(H) x 300(W) x 391(D)
Bahías 2 x 5.25" (External)  / 1 x 3.5" (External)  / 2 x 3.5” (Hidden)
Slots 4 Slots
Máxima longitud disponible para slots PCI 330 mm
Puertos I/O 2 x USB2.0 / Mic & headphone (AC97 & HD audio)
Fuente de alimentación Fuente standard ATX pero recomendamos la profundidad no sea mayor que 140mm and del tipo no modular.
  Frontal
Ventilador 120 x 120 x 18mm
(with Quad Blue & Red LEDs)
Rango de Voltage 12V
Inicio de Voltage DC 9V ~ 13.8V
Consumo de Energía 2.4W
Intensidad Nominal 0.20A
Revoluciones 1500 RPM ± 10%
Flujo de Aire (CFM) 63.75 CFM (Max)
Presión 2.07mm H2O
Ruido (dBA) 26.81 dB-A
Rodamiento Sleeve
